Modern graphics accelerators are evolving into true power-hungry behemoths, demanding unprecedented levels of wattage to ensure operational stability. With the imminent launch of the RTX 5090 series, the industry faces a critical challenge: sustaining multi-GPU configurations. Market leaders have responded by introducing solutions that push the boundaries of the conventional ATX standard. The conversation has shifted from simple power supply units to the development of sophisticated power hubs engineered specifically for high-performance workstations.

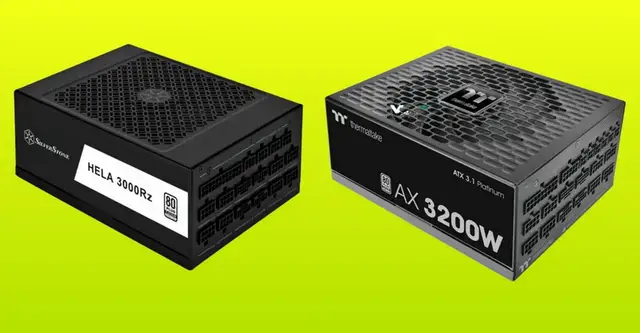

The rapid evolution of graphics cards in recent years has pushed traditional power supply units to their breaking point, leaving them unable to handle the peak loads demanded by professional-grade systems. In this climate, the emergence of models rated at 3000W and above is no longer merely a technical milestone—it is a production necessity. Thermaltake and SilverStone have simultaneously unveiled units capable of powering up to four next-generation flagship GPUs, unlocking new frontiers for high-end rendering, neural network training, and complex engineering computations.

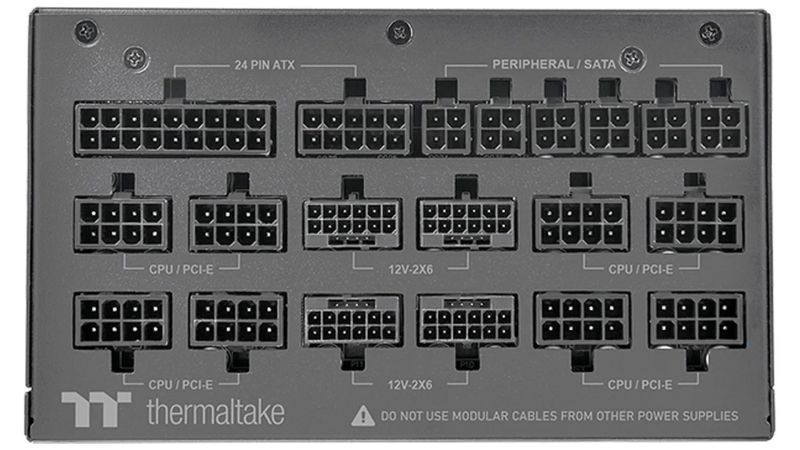

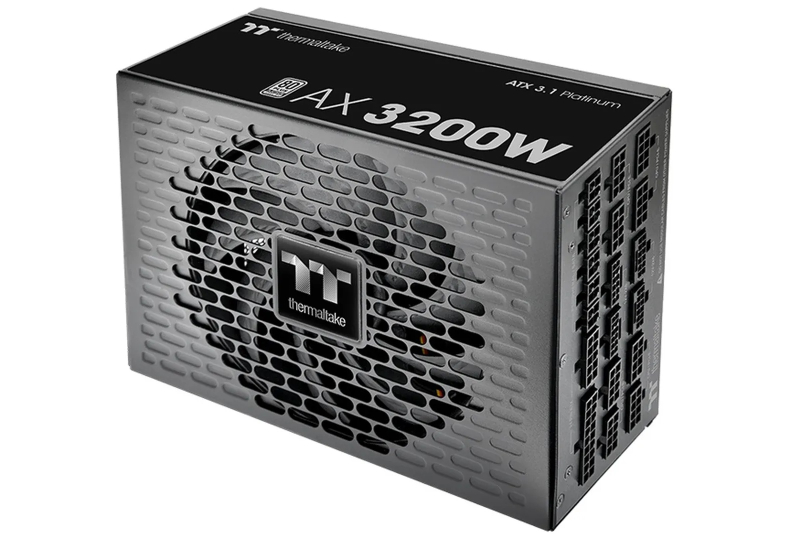

Particular attention is drawn to the Thermaltake AX 3200W. This unit is engineered around the latest ATX 3.1 and PCIe 5.1 specifications, ensuring seamless compatibility with the newest power delivery interfaces. The centerpiece of its design is the inclusion of four 12V-2×6 connectors, each capable of delivering up to 600W. This approach completely eliminates the need for cumbersome adapters and ensures a clean, stable current flow to GPUs on the scale of the RTX 5090.
The technical internals of the AX 3200W are uncompromising: a single +12V rail provides a current of 266.6A, effectively covering nearly the entire rated capacity of the device. To ensure longevity and stability under extreme thermal stress, high-grade Japanese capacitors with a temperature threshold of up to 105°C have been utilized. Efficiency is validated by an 80 PLUS 230V EU Internal Platinum certification, while thermal management is handled by a massive 140mm dual ball-bearing fan—a critical feature when dealing with such high current loads.

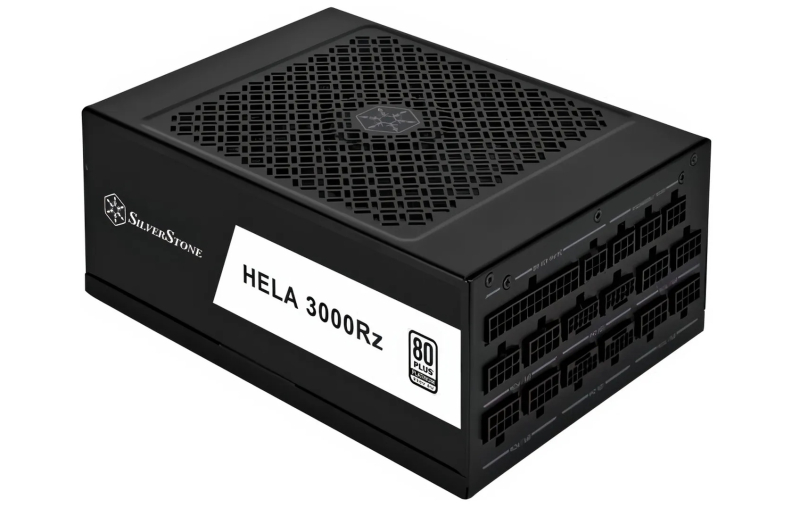

Parallel to this, SilverStone has introduced its own interpretation of ultra-high-power delivery: the HELA 3000Rz. While sharing similar dimensions (150 × 86 × 200 mm), this unit emphasizes connectivity versatility for peripherals and processors. In addition to four 12V-2×6 connectors, it features four EPS connectors, making it an ideal choice for multi-processor systems or motherboards with expanded VRM power phases. The single +12V rail in this model is rated for a current of up to 250A.
However, behind this colossal power lies a critical engineering nuance that may surprise users in regions with lower mains voltage. Neither device is physically designed to operate on 120V grids (common in the US, for example). Thermaltake strictly limits input voltage to a range of 230–240V, while SilverStone allows operation between 180 and 264V. This is dictated by the laws of physics: at a 3kW output, operating on low voltage would require an excessively high input current, leading to cable overheating and a significant drop in efficiency.
Ultimately, the industry is entering a new phase where the power supply is no longer just an auxiliary component, but a central pillar of workstation infrastructure. The arrival of such devices signals that upcoming graphics solutions will demand an energy potential previously reserved for server racks or industrial-grade equipment.
